- Für die Bearbeitung von Nichteisenmetallen
- Sanfter Schnitt durch Achswinkelgeometrie
- Höchste Zerspanungsleistungen
- Z2 mit einer Schneide über Mitte
- Mit Innenkühlung
- SchaftØ h6
- SONDERRADIEN AUF ANFRAGE thw@thw-shop.at
PKD Torusfräser mit IK
131,10 € – 973,56 €
exkl. MwSt. zzgl. Versandkosten
Lieferzeit: 5-7 Werktage

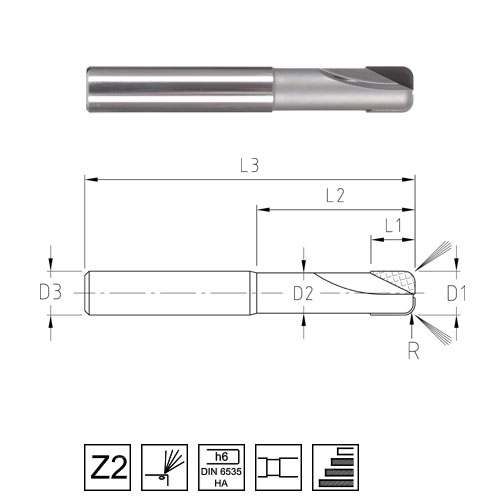

| D1 | L1 | D2 | L2 | D3 | L3 | Art.-Code |
|---|---|---|---|---|---|---|
| Ø6x57xR0,5 | 6 | 5.5 | 20 | 6 | 57 | |
| Ø6x75xR0,5 | 6 | 5.5 | 38 | 6 | 75 | |
| Ø6x100xR0,5 | 6 | 5.5 | 63 | 6 | 100 | |
| Ø6x57xR1,0 | 6 | 5.5 | 20 | 6 | 57 | |
| Ø6x75xR1,0 | 6 | 5.5 | 38 | 6 | 75 | |
| Ø6x100xR1,0 | 6 | 5.5 | 63 | 6 | 100 | |
| Ø6x57xR1,5 | 6 | 5.5 | 20 | 6 | 57 | |
| Ø6x75xR1,5 | 6 | 5.5 | 38 | 6 | 75 | |
| Ø6x100xR1,5 | 6 | 5.5 | 63 | 6 | 100 | |
| Ø6x57xR2,0 | 6 | 5.5 | 20 | 6 | 57 | |
| Ø6x75xR2,0 | 6 | 5.5 | 38 | 6 | 75 | |
| Ø6x100xR2,0 | 6 | 5.5 | 63 | 6 | 100 | |
| Ø8x64xR0,5 | 8 | 7.3 | 26 | 8 | 64 | |
| Ø8x90xR0,5 | 8 | 7.3 | 52 | 8 | 90 | |
| Ø8x115xR0,5 | 8 | 7.3 | 77 | 8 | 115 | |
| Ø8x64xR1,0 | 8 | 7.3 | 26 | 8 | 64 | |
| Ø8x90xR1,0 | 8 | 7.3 | 52 | 8 | 90 | |
| Ø8x115xR1,0 | 8 | 7.3 | 77 | 8 | 115 | |
| Ø8x64xR1,5 | 8 | 7.3 | 26 | 8 | 64 | |
| Ø8x90xR1,5 | 8 | 7.3 | 52 | 8 | 90 | |
| Ø8x115xR1,5 | 8 | 7.3 | 77 | 8 | 115 | |
| Ø8x64xR2,0 | 8 | 7.3 | 26 | 8 | 64 | |
| Ø8x90xR2,0 | 8 | 7.3 | 52 | 8 | 90 | |
| Ø8x115xR2,0 | 8 | 7.3 | 77 | 8 | 115 | |
| Ø8x64xR2,5 | 8 | 7.3 | 26 | 8 | 64 | |
| Ø8x90xR2,5 | 8 | 7.3 | 52 | 8 | 90 | |
| Ø8x115xR2,5 | 8 | 7.3 | 77 | 8 | 115 | |
| Ø10x74xR1,0 | 10 | 9.2 | 32 | 10 | 74 | |
| Ø10x100xR1,0 | 10 | 9.2 | 58 | 10 | 100 | |
| Ø10x125xR1,0 | 10 | 9.2 | 83 | 10 | 125 | |
| Ø10x74xR1,5 | 10 | 9.2 | 32 | 10 | 74 | |
| Ø10x100xR1,5 | 10 | 9.2 | 58 | 10 | 100 | |
| Ø10x125xR1,5 | 10 | 9.2 | 83 | 10 | 125 | |
| Ø10x74xR2,0 | 10 | 9.2 | 32 | 10 | 74 | |
| Ø10x100xR2,0 | 10 | 9.2 | 58 | 10 | 100 | |
| Ø10x125xR2,0 | 10 | 9.2 | 83 | 10 | 125 | |
| Ø10x74xR2,5 | 10 | 9.2 | 32 | 10 | 74 | |
| Ø10x100xR2,5 | 10 | 9.2 | 58 | 10 | 100 | |
| Ø10x125xR2,5 | 10 | 9.2 | 83 | 10 | 125 | |
| Ø10x74xR3,0 | 10 | 9.2 | 32 | 10 | 74 | |
| Ø10x100xR3,0 | 10 | 9.2 | 58 | 10 | 100 | |
| Ø10x125xR3,0 | 10 | 9.2 | 83 | 10 | 125 | |
| Ø12x82xR1,0 | 12 | 11.0 | 35 | 12 | 82 | |
| Ø12x108xR1,0 | 12 | 11.0 | 61 | 12 | 108 | |
| Ø12x135xR1,0 | 12 | 11.0 | 88 | 12 | 135 | |
| Ø12x82xR1,5 | 12 | 11.0 | 35 | 12 | 82 | |
| Ø12x108xR1,5 | 12 | 11.0 | 61 | 12 | 108 | |
| Ø12x135xR1,5 | 12 | 11.0 | 88 | 12 | 135 | |
| Ø12x82xR2,0 | 12 | 11.0 | 35 | 12 | 82 | |
| Ø12x108xR2,0 | 12 | 11.0 | 61 | 12 | 108 | |
| Ø12x135xR2,0 | 12 | 11.0 | 88 | 12 | 135 | |
| Ø12x82xR2,5 | 12 | 11.0 | 35 | 12 | 82 | |
| Ø12x108xR2,5 | 12 | 11.0 | 61 | 12 | 108 | |
| Ø12x135xR2,5 | 12 | 11.0 | 88 | 12 | 135 | |
| Ø12x82xR3,0 | 12 | 11.0 | 35 | 12 | 82 | |
| Ø12x108xR3,0 | 12 | 11.0 | 61 | 12 | 108 | |
| Ø12x135xR3,0 | 12 | 11.0 | 88 | 12 | 135 | |
| Ø12x82xR4,0 | 12 | 11.0 | 35 | 12 | 82 | |
| Ø12x108xR4,0 | 12 | 11.0 | 61 | 12 | 108 | |
| Ø12x135xR4,0 | 12 | 11.0 | 88 | 12 | 135 | |
| Ø14x95xR1,0 | 14 | 12.8 | 47 | 14 | 95 | |
| Ø14x115xR1,0 | 14 | 12.8 | 67 | 14 | 115 | |
| Ø14x150xR1,0 | 14 | 12.8 | 102 | 14 | 150 | |
| Ø14x95xR1,5 | 14 | 12.8 | 47 | 14 | 95 | |
| Ø14x115xR1,5 | 14 | 12.8 | 67 | 14 | 115 | |
| Ø14x150xR1,5 | 14 | 12.8 | 102 | 14 | 150 | |
| Ø14x95xR2,0 | 14 | 12.8 | 47 | 14 | 95 | |
| Ø14x115xR2,0 | 14 | 12.8 | 67 | 14 | 115 | |
| Ø14x150xR2,0 | 14 | 12.8 | 102 | 14 | 150 | |
| Ø14x95xR2,5 | 14 | 12.8 | 47 | 14 | 95 | |
| Ø14x115xR2,5 | 14 | 12.8 | 67 | 14 | 115 | |
| Ø14x150xR2,5 | 14 | 12.8 | 102 | 14 | 150 | |
| Ø14x95xR3,0 | 14 | 12.8 | 47 | 14 | 95 | |
| Ø14x115xR3,0 | 14 | 12.8 | 67 | 14 | 115 | |
| Ø14x150xR3,0 | 14 | 12.8 | 102 | 14 | 150 | |
| Ø14x95xR4,0 | 14 | 12.8 | 47 | 14 | 95 | |
| Ø14x115xR4,0 | 14 | 12.8 | 67 | 14 | 115 | |
| Ø14x150xR4,0 | 14 | 12.8 | 102 | 14 | 150 | |
| Ø14x95xR5,0 | 14 | 12.8 | 47 | 14 | 95 | |
| Ø14x115xR5,0 | 14 | 12.8 | 67 | 14 | 115 | |
| Ø14x150xR5,0 | 14 | 12.8 | 102 | 14 | 150 | |
| Ø16x100xR1,0 | 16 | 14.7 | 49 | 16 | 100 | |
| Ø16x125xR1,0 | 16 | 14.7 | 74 | 16 | 125 | |
| Ø16x165xR1,0 | 16 | 14.7 | 114 | 16 | 165 | |
| Ø16x100xR1,5 | 16 | 14.7 | 49 | 16 | 100 | |
| Ø16x125xR1,5 | 16 | 14.7 | 74 | 16 | 125 | |
| Ø16x165xR1,5 | 16 | 14.7 | 114 | 16 | 165 | |
| Ø16x100xR2,0 | 16 | 14.7 | 49 | 16 | 100 | |
| Ø16x125xR2,0 | 16 | 14.7 | 74 | 16 | 125 | |
| Ø16x165xR2,0 | 16 | 14.7 | 114 | 16 | 165 | |
| Ø16x100xR2,5 | 16 | 14.7 | 49 | 16 | 100 | |
| Ø16x125xR2,5 | 16 | 14.7 | 74 | 16 | 125 | |
| Ø16x165xR2,5 | 16 | 14.7 | 114 | 16 | 165 | |
| Ø16x100xR3,0 | 16 | 14.7 | 49 | 16 | 100 | |
| Ø16x125xR3,0 | 16 | 14.7 | 74 | 16 | 125 | |
| Ø16x165xR3,0 | 16 | 14.7 | 114 | 16 | 165 | |
| Ø16x100xR4,0 | 16 | 14.7 | 49 | 16 | 100 | |
| Ø16x125xR4,0 | 16 | 14.7 | 74 | 16 | 125 | |
| Ø16x165xR4,0 | 16 | 14.7 | 114 | 16 | 165 | |
| Ø16x100xR5,0 | 16 | 14.7 | 49 | 16 | 100 | |
| Ø16x125xR5,0 | 16 | 14.7 | 74 | 16 | 125 | |
| Ø16x165xR5,0 | 16 | 14.7 | 114 | 16 | 165 | |
| Ø18x105xR1,0 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR1,0 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR1,0 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø18x105xR1,5 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR1,5 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR1,5 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø18x105xR2,0 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR2,0 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR2,0 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø18x105xR2,5 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR2,5 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR2,5 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø18x105xR3,0 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR3,0 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR3,0 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø18x105xR4,0 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR4,0 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR4,0 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø18x105xR5,0 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR5,0 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR5,0 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø18x105xR6,0 | 18 | 16.5 | 54 | 18 | 105 | |
| Ø18x135xR6,0 | 18 | 16.5 | 84 | 18 | 135 | |
| Ø18x180xR6,0 | 18 | 16.5 | 129 | 18 | 180 | |
| Ø20x110xR1,0 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR1,0 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR1,0 | 20 | 18.3 | 146 | 20 | 200 | |
| Ø20x110xR1,5 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR1,5 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR1,5 | 20 | 18.3 | 146 | 20 | 200 | |
| Ø20x110xR2,0 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR2,0 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR2,0 | 20 | 18.3 | 146 | 20 | 200 | |
| Ø20x110xR2,5 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR2,5 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR2,5 | 20 | 18.3 | 146 | 20 | 200 | |
| Ø20x110xR3,0 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR3,0 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR3,0 | 20 | 18.3 | 146 | 20 | 200 | |
| Ø20x110xR4,0 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR4,0 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR4,0 | 20 | 18.3 | 146 | 20 | 200 | |
| Ø20x110xR5,0 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR5,0 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR5,0 | 20 | 18.3 | 146 | 20 | 200 | |
| Ø20x110xR6,0 | 20 | 18.3 | 56 | 20 | 110 | |
| Ø20x150xR6,0 | 20 | 18.3 | 96 | 20 | 150 | |
| Ø20x200xR6,0 | 20 | 18.3 | 146 | 20 | 200 | |
